PREMIUM LED DISPLAY SOLUTIONS
Grand View Displays delivers premium direct-view LED solutions designed around your space, viewing distance, and vision.
From residential entertainment and outdoor living to commercial installations, we help you select the right display size, pixel pitch, and configuration — followed by professional installation and support.

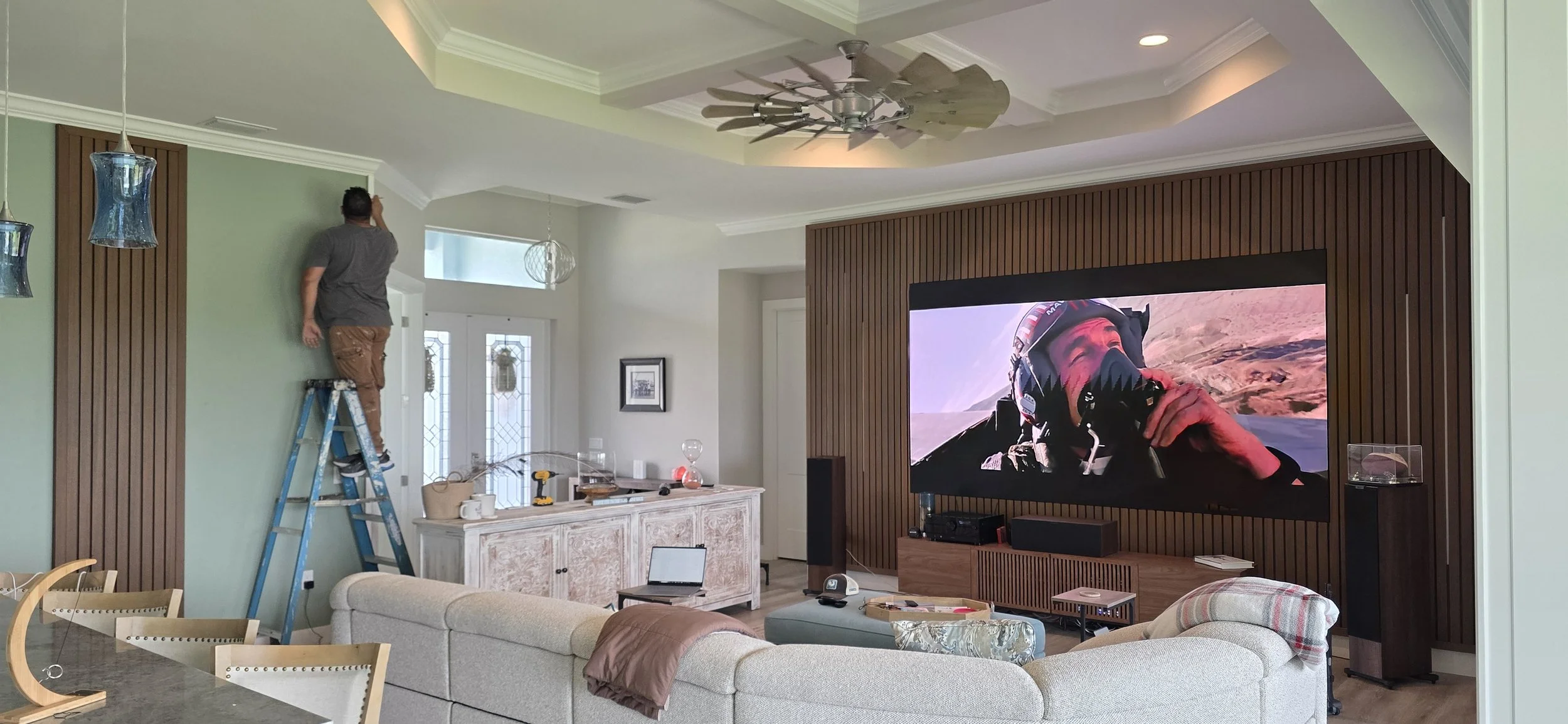

RESIDENTIAL LED WALLS
Transform your living room, media room, or home theater with a custom direct-view LED display designed around your space.

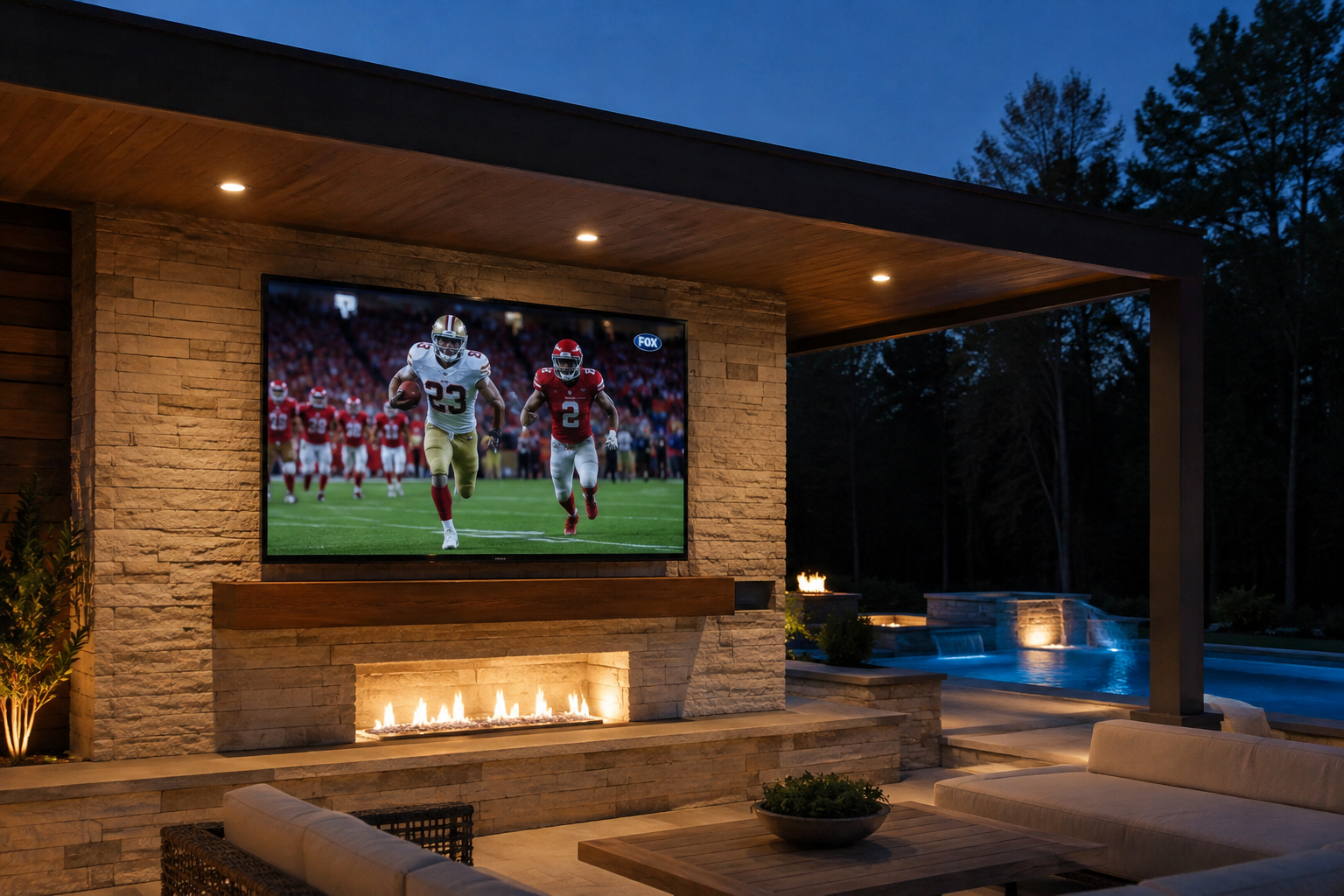

OUTDOOR LED DISPLAYS
Bring the big-screen experience outdoors with bright, weather-rated LED displays built for patios, pool areas, and outdoor entertainment.

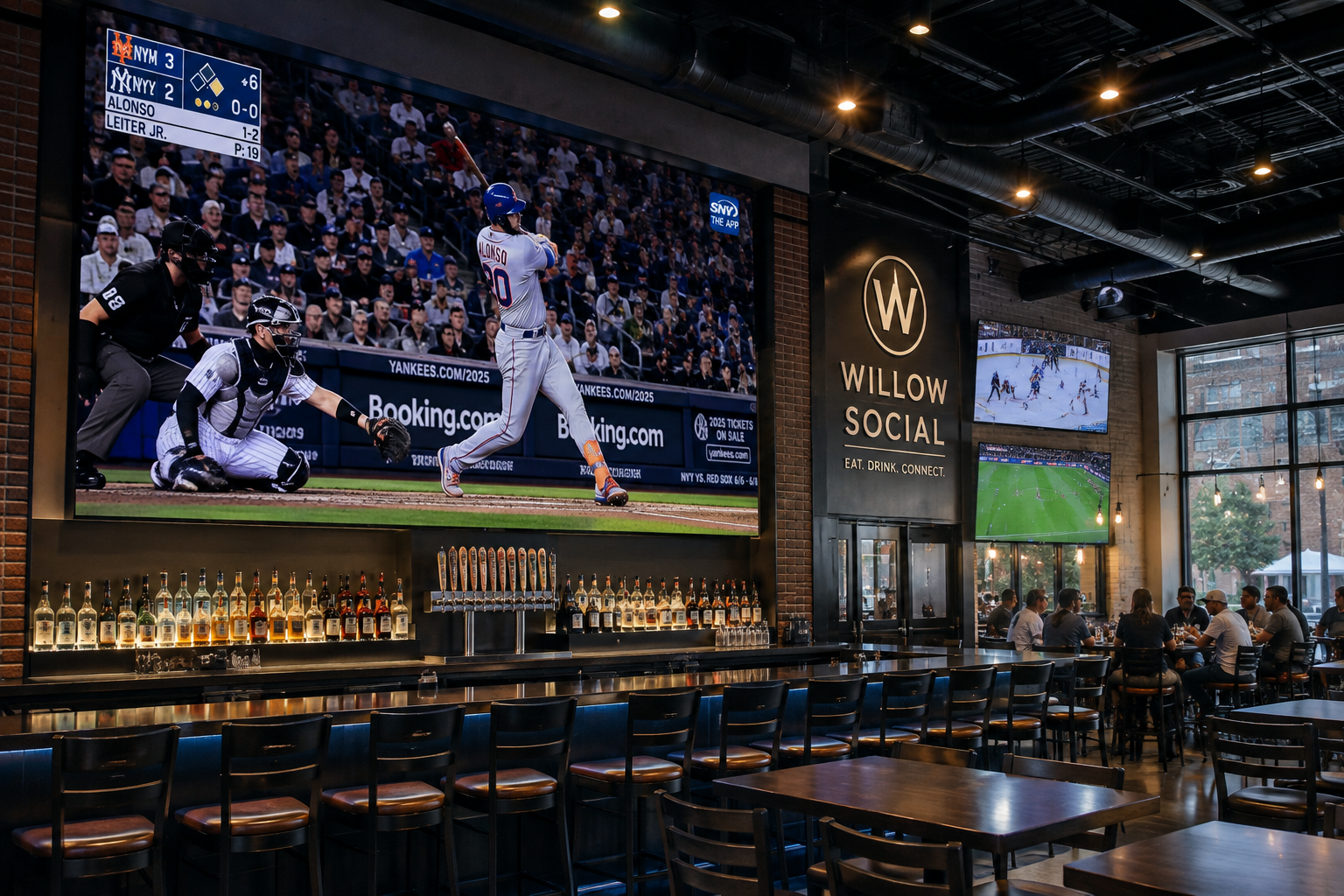

COMMERCIAL LED DISPLAYS
Make a bigger impact with custom LED displays for restaurants, sports bars, retail spaces, showrooms, offices, and commercial venues.
COOLLED INDOOR SPECIFICATIONS
Select a category to explore technical specifications.
| MODEL | P0.78125 COB | P0.9375 COB | P1.25 COB | P1.5625 COB | P1.875 COB |
|---|---|---|---|---|---|
| Scan Mode (S) | 54S | 60S | 60S | 54S | 45S |
| LED Array | 1R1G1B | ||||
| Pixel Density (Pixel/m²) | 1,638,400 | 1,137,778 | 640,000 | 409,600 | 284,000 |
| LED Type | Mini Chip LED 3×6mil | ||||
| Gray Level (BIT) | 13–22 bit | 14 bit | 13 bit | 13–22 bit | 13–22 bit |
| Contrast Ratio | 30,000:1 | ||||
| Brightness (nits) | 600–2500 | 600–1000 | 600–1000 | 600–1000 | 600–1000 |
| Viewing Angle | H160° / V140° | ||||
| Avg. Power / Cabinet | <28W | <20W | <20W | <20W | <20W |
| Max Power / Cabinet | 70W | 50W | 50W | 50W | 50W |
| Refresh Rate (Hz) | 3840Hz | ||||
| MODEL | P0.78125 COB | P0.9375 COB | P1.25 COB | P1.5625 COB | P1.875 COB |
|---|---|---|---|---|---|
| Module Dimension (W×H) (mm) | 150×168.75 | 150×168.75 | 300×168.75 | 300×168.75 | 300×168.75 |
| Cabinet Dimension (W×H) (mm) | 600×337.5 | ||||
| Cabinet Resolution (W×H) (Pixel) | 768×432 | 640×360 | 480×270 | 384×216 | 320×180 |
| Module Quantity / Cabinet | 8 | 8 | 4 | 4 | 4 |
| Cabinet Material | DIE-CAST ALUMINUM | ||||
| SPECIFICATION | COOLLED INDOOR |
|---|---|
| Life Time (Hours) | 100,000 HOURS |
| Operating Temperature | -4°F – 120°F |
| Operation Humidity | 10% – 90% |
| Operating System | WINDOWS |
| Receiving Card | NOVA STAR |
| Certification | ETL · UL · RoHS |
